What is a Load Tap Changer?
A Load Tap Changer (LTC) — or On-Load Tap Changer (OLTC) — is a switching mechanism built into medium and high voltage power transformers. Its function is to adjust the transformer’s voltage ratio while the unit is fully energized and under load. It keeps downstream voltage within acceptable limits as demand rises and falls throughout the day.
This makes the LTC a fundamentally different class of machinery from the transformer it serves. The main tank — the core and windings — is a passive, static asset. It endures electrical load. The LTC does the opposite: it executes hundreds to thousands of high-velocity mechanical operations per year depending on application, each one breaking and making a high-current connection inside an oil-filled compartment. It actively degrades its own insulating fluid in the process. It wears. It fails on its own terms.
That distinction is not incidental. It determines how a failure investigation is scoped, what evidence is recoverable, and where liability is likely to land.

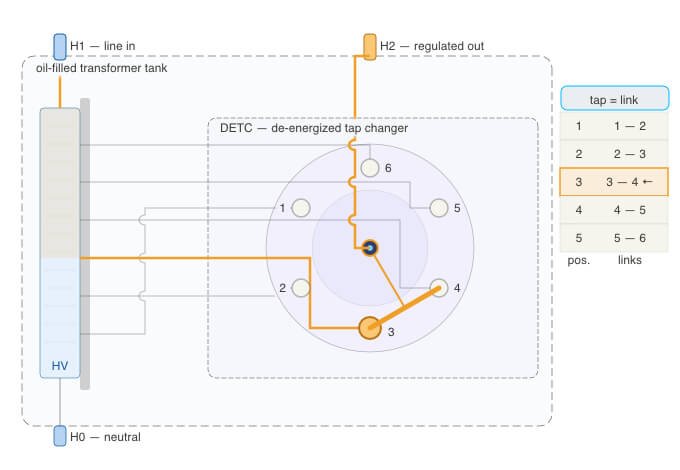

A DETC rotary tap changer schematic showing tap position 3 active, bridging winding sections 3 and 4. The contact surfaces, oil condition, and mechanical state each carry independent information about the failure history. Diagram: Mission Critical Forensics.
How it works — enough to understand the failure
The LTC steps through discrete tap positions on the transformer winding — typically a range of ±10 to ±20 percent of nominal voltage — driven by an Automatic Voltage Control (AVC) relay. Each step involves two mechanical events: a pre-selector that moves to the target tap, and a diverter switch that transfers load current across. The diverter operation is fast and deliberate — it briefly bridges two adjacent taps through a transition element before completing the transfer.
That transition — repeated across the service life of the transformer — is where degradation accumulates. The arc energy, the oil condition, the state of the contacts, and the integrity of the transition element all interact. When something in that chain fails, the consequences can range from a protection relay trip to a full tank event.
Critically, the LTC can reach that point entirely on its own. A transformer can be in otherwise sound condition — windings intact, insulation healthy, oil clean — while the LTC fails independently due to neglected mechanical maintenance. The investigation that follows is not a transformer investigation. It is an LTC investigation. The forensic disciplines involved, the maintenance documents that matter, and the liability questions that emerge are specific to the LTC as a standalone mechanical system.
“The LTC is not another component in a transformer failure — it is an independent failure ecosystem. Getting that distinction right at the outset determines whether the investigation asks the right questions.”
Types of LTC — why it matters which one is installed
The design of the LTC determines the failure modes in play and what physical evidence is available post-failure. These are the main categories in service across Canadian distribution and transmission infrastructure.
European standard — dominant in modern installations
Resistor-type OLTC
Transition resistors bridge tap positions during switching. High arc energy; oil carbonization is the primary degradation pathway.
Traditional North American standard
Reactor-type (Preventive Autotransformer)
An inductor serves as the transition element. The historical ANSI/IEEE standard — common in legacy North American substation transformers and large autotransformers.
Newer installations
Vacuum bottle OLTC
No in-oil arc — contacts enclosed in vacuum interrupters. Distinct failure modes; oil carbonization is not the primary indicator.
Higher consequence
In-tank OLTC
Shares oil with the main tank. LTC contamination directly threatens main winding insulation — failure scope tends to be broader.
Compartmentalized
External compartment OLTC
Separate oil compartment reduces contamination risk but introduces seal and inter-compartment failure modes of its own.
Emerging
Solid-state tap changer
Electronic switching — no contacts, no arc. Rarely encountered in field investigations today but entering service in newer installations.
How LTCs fail — and why it matters for your file
LTC failures span a range of mechanisms — some mechanical, some electrical, some driven by fluid condition, some by control system behavior. What they share is that the failure event is rarely the whole story. The more consequential question, from a claims standpoint, is almost always what preceded it and whether that history was visible.
The categories below are worth knowing — not because they tell you what happened, but because they shape the right questions to ask before a forensic investigation is scoped.
Mechanical degradation of switching components
The switching mechanism accumulates wear with every operation. The relevant question is not whether wear occurred, but how much, relative to what was expected at that point in service — and whether the maintenance record reflects that the owner was tracking it.
Dielectric failure within the LTC compartment
Loss of insulating integrity inside the LTC — through oil condition, contamination, or geometric changes from wear — can lead to flashover. Whether that failure was sudden or progressive is something the physical and oil record can often resolve, and the answer changes the causation picture significantly.
Transition element failure during a tap change operation
This is among the more consequential failure modes — it occurs at the moment of switching and can be rapid and severe. What a claim turns on here is whether the failure was inherent to the component or driven by conditions that had been developing over time.
Motor drive and control system failures
The LTC depends on a motor-driven mechanical system and a control relay to execute each operation correctly. Failures here range from stranded mid-position mechanisms to runaway tap cycling. Both can cause damage well before any protection alarm triggers — which has direct implications for what the insured knew or should have known.
Oil contamination and cross-compartment migration
Where the LTC oil system is separate from the main tank, the boundary between them is a critical point of investigation. A second failure mode — in the main winding — that appears unrelated to the LTC often traces back to this boundary. Recognizing that connection early changes how a claim is framed.
Overvoltage and surge events
External electrical events can cause LTC failure directly — or can expose pre-existing weakness that made the transformer vulnerable. Establishing which is the case requires more than identifying the surge event. It requires an understanding of the component condition that existed before it arrived.
Why these claims are rarely straightforward
The failure modes above don’t produce identical evidence, and the same physical findings can point in different directions depending on context. A carbon-laden oil sample means something different in a unit with documented maintenance gaps than in one with a current service record. A tripped protection relay following a storm means something different if the LTC contacts were already at end-of-life.
The work of an LTC failure investigation is largely interpretive — assembling findings from multiple independent sources and understanding how they interact. The most consequential errors in these investigations tend to come not from missing a finding, but from reading it without the full picture.
That interpretive challenge is also where causation opinions become defensible — or don’t.
What the right investigation actually requires
Transformer failure investigation is a narrow discipline. The equipment is specialized, the failure mechanisms are specific to high-voltage power systems, and the evidence — physical, chemical, electrical, and operational — has to be read together to produce a causation opinion that holds up under scrutiny. General electrical engineering expertise is a starting point, not a qualification.
The questions below are worth asking of any forensic engineer retained on a transformer file. They reflect what the work actually demands.
- The investigation requires
Specific experience with power transformer failure — not general electrical forensics
Mission Critical ForensicsPower transformer and high-voltage switching equipment failure is the exclusive practice area — not one service among many
- The investigation requires
Ability to interpret protection relay event records and SCADA data as part of the causation analysis
Mission Critical ForensicsProtection relay forensics — reading COMTRADE files, relay event logs, and sequence-of-events records — is a core technical capability, not a referred-out function
- The investigation requires
The same person who conducts the investigation to author the report and be available for testimony
Mission Critical ForensicsSingle-principal practice — the engineer retained is the engineer who opens the equipment, writes the opinion, and testifies. No handoff, no fidelity loss between site and report
- The investigation requires
A report structured for insurance and legal proceedings — not a technical document that requires interpretation by counsel
Mission Critical ForensicsForensic reports are written with coverage analysis, subrogation, and litigation in mind from the first line — causation, timeline, and opinion framed for the proceeding, not the engineering file
- The investigation requires
Independence from equipment manufacturers, OEMs, and utility operators
Mission Critical ForensicsNo OEM service contracts, no utility client relationships, no manufacturer accounts. Independence is structural, not just declared
What this means for a claim
LTC failures tend to surface questions that don’t resolve on their own: Was the failure abrupt or the end of a longer process? What did the service history show, and was that history adequate? Is the apparent cause actually the root cause, or a secondary event produced by something upstream of it? These aren’t questions that the failure event itself answers — they require a structured investigation that accounts for both the physical evidence and the operational record.
Engaging forensic engineering early — even before investigation scope is defined — tends to preserve the options available to counsel and adjuster alike. The physical evidence from an LTC failure changes with time and handling, and what is documentable in the first days of an investigation is not always recoverable later.
